The Tilton 72-616 brake pedal assembly is the latest offering from Tilton with the master cylinders mounted under the feet. Tilton pedal boxes are the best available value for their type. The standard of engineering, materials and workmanship that goes into the production Tilton 600-Series pedal boxes is unmatched by anything in their price range and difficult to beat regardless of budget.
Pedal ratio's are a little subjective as it is related to the position of your foot and the pedal pad position but in theory you could have a pedal ratio from 5.4:1 up to 6.9:1
Incorporating technology from the bench mark setting 900-Series, the latest generation of 600-Series pedal assemblies have been engineered to provide excellent performance at competitive prices. The newly redesigned 600-Series pedal assemblies incorporate features such as ramps to prevent balance bar tipping, high-strength 7/16" balance bars, adjustable foot pads and oil-impregnated bronze bushings at pedal pivots. As with all Tilton pedal assemblies, ergonomic principles have been applied to reduce driver fatigue and provide exceptional feedback.
As the Tilton 72-616 pedal assembly positions the master cylinders inside the car, it is recommended that you use the 76-Series master cylinders with stainless braided hoses or metallic hard lines in order to remain complainant with motorsport regulations with regard to fluids in the cockpit.

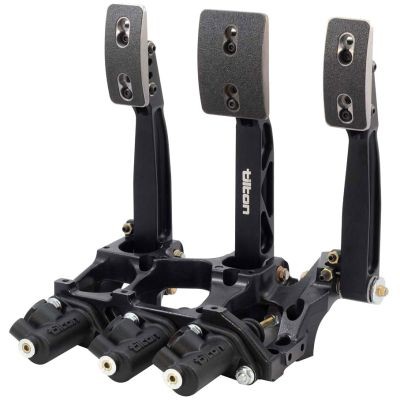

Please Note: Brake and clutch master cylinders are not included with Tilton pedal boxes and are shown for illustrative purposes only, if required they should be ordered separately. The pedal box is shown with 76-Series Master Cylinders and this is this the master cylinder that must be used in this instal
