Tilton 900 Series 2 Pedal Overhung Mount Pedal Assembly With Billet Aluminium Pedals 72-902
Tilton 900 Series 2 Pedal Overhung Mount Pedal Assembly With Billet Aluminium Pedals 72-902
Tilton 900 Series 2 Pedal Overhung Mount Pedal Assembly With Billet Aluminium Pedals 72-902
Tilton
Tilton 900 Series 2 Pedal Overhung Mount Pedal Assembly With Billet Aluminium Pedals 72-902
Description
Features
More Information
Reviews
Q & A
Why Competition Supplies?

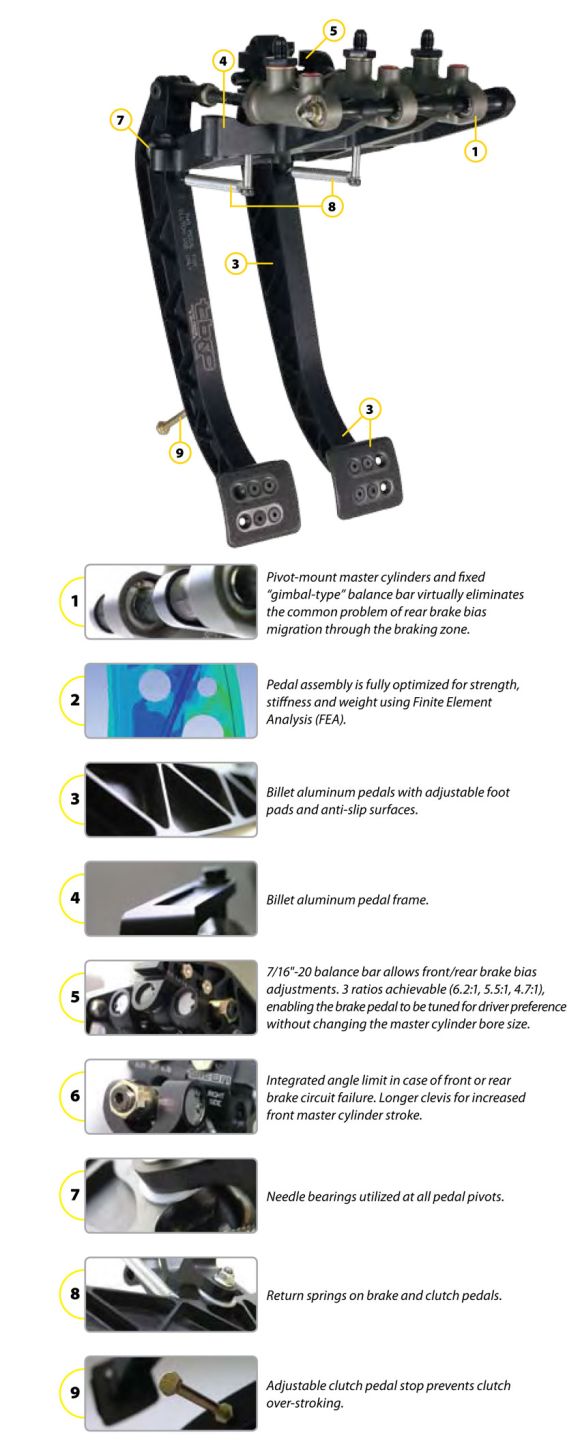

The Tilton 900-Series overhung mount pedal assembly features the latest in pivot-mount master cylinder technology, enabling maximum performance to be achieved from your braking system. Engineered to reduce friction within the balance bar/master cylinder system and reduce flex of the pedals, this assembly provides exceptional feedback and repeatable braking, inspiring driver confidence and faster lap times.
The assembly is produced with the highest quality materials available, using the latest manufacturing processes. Needle bearings and/or sealed ball bearings are used at all pivots for reduced friction and precise action. The pedal frame is machined from billet aluminium for rigidity and weight savings whilst the pedals are machined billet aluminium and are fully optimised for strength, stiffness and weight savings using Finite Element Analysis (FEA). The included balance bar features adjustable ratios and needle bearings that ride on hard-ground surfaces at all pivots. In short, 900-Series pedal assemblies have been engineered for race teams that demand the absolute best!

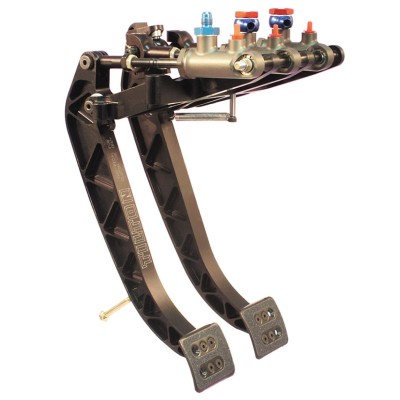

Please Note: Shown with Tilton 77 series master Cylinders which are not included and should be ordered seperately.



Tilton 900 Series 2 Pedal Overhung Mount Pedal Assembly With Billet Aluminium Pedals 72-902

Part number: 72-902
(0)
£1945.54 VAT EX (£2334.64 VAT INC)
Special order item normally arrives within 7 days from point of order
Decrease quantity
Increase quantity
ADD TO BASKET
Optional Items
Front Brake Master Cylinder
From £279.33 VAT EX (£335.20 VAT INC)
Version
Bore Size
Please select your option to view stock
Please select your options
Add to Basket
Rear Brake Master Cylinder
From £279.33 VAT EX (£335.20 VAT INC)
Version
Bore Size
Please select your option to view stock
Please select your options
Add to Basket
Clutch Master Cylinder
From £279.33 VAT EX (£335.20 VAT INC)
Version
Bore Size
Please select your option to view stock
Please select your options
Add to Basket
Bias Adjuster Cable
From £80.37 VAT EX (£96.44 VAT INC)
Colour
Please select your option to view stock
Please select your options
Add to Basket
3 Camber Reservoir
From £134.28 VAT EX (£161.13 VAT INC)
Ports
Please select your option to view stock
Please select your options
Add to Basket
