Home / Braking Components / Master Cylinders & Accessories / Tilton 77 Series Master Cylinder

Description

Features

More Information

Reviews

Why Competition Supplies?

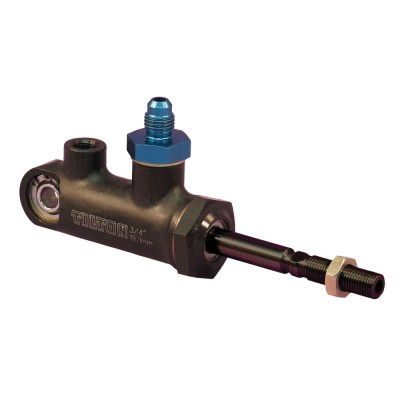

77-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/ pushrod eliminate side thrust into the master cylinder bore,providing consistent and repeatable braking. 77-Series master cylinders specifically for use with Tilton 900-Series pedal assemblies and balance bars.

•

Reliable seal/piston design.

•

Billet aluminium body profile is optimised for each bore size, providing the highest levels of strength/stiffness while minimising weight.

•

Hand-built and blueprinted for cut-off port travel. Cut-off port travel may be tuned for increased or decreased pedal free-play using optional shims.

•

Spherical bearing (rear pivot) is positively retained with circlips.

•

Proprietary low-friction coatings minimise wear and provide smooth operation.

•

29mm of stroke provides the fluid displacement needed for a wide variety of applications.

•

AN6 crush washer seal inlet port.

•

AN3 outlet port

•

Weighs 140gms (varies by bore size)

Installation Drawing

Write a review

Write a Review

We stock an extensive range of components carefully curated to offer quality and value for money. We have not joined the mad rush for the bottom and recognise that value isn't only about price. We invest heavily in stock to offer exceptional availability and understand our products so we can work with you to create installations that are elegant and effective whilst meeting your performance and budgetary requirements. Large stocks and carefully selected courier partners allow us to offer unrivalled fast delivery when the pressure is on and great value when you have a little more time. If service, performance and value are your motivation then Competition Supplies are your best choice.

Part numbers:
77-937

Tilton 77 Series Master Cylinder

Name: Tilton 77 Series Master Cylinders
Brand: Tilton
SKU: TLT77-937
Price: 342.67 GBP
Availability: InStock

15/16" (23.8mm) Bore

Part number: 77-937

(0)

£285.56 VAT EX (£342.67 VAT INC)
RRP £356.95 Save £71.39 (20%)

Bore Size - 15/16" (23.8mm)

✓ Last 1 In Stock

Order in 11 hours 12 minutes for same day dispatch

Bore Size is required

ADD TO BASKET
