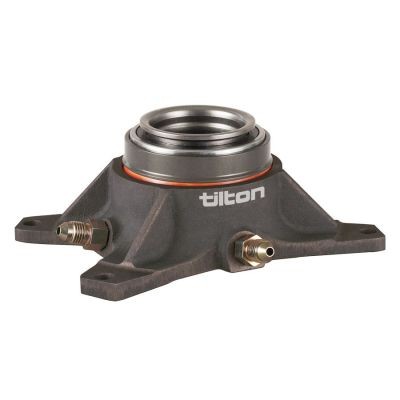

Tilton 5000 Series Hydraulic Release Bearings
Tilton
Tilton 5000 Series Hydraulic Release Bearings
Description
Features
Recommended Master Cylinder Sizes & Bearing Types

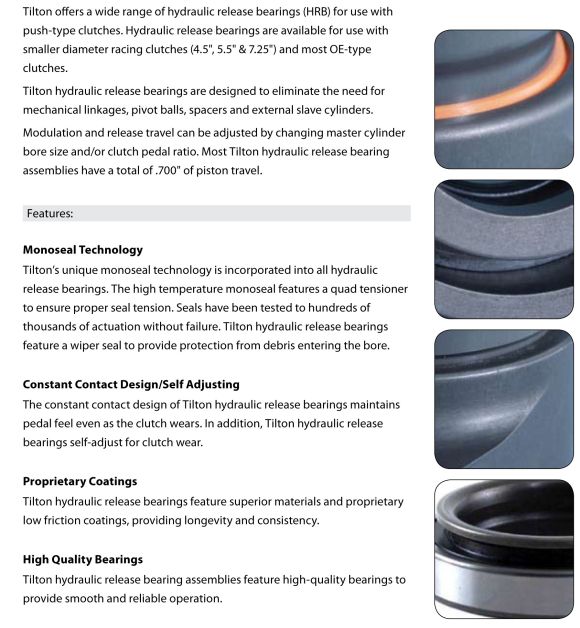

Technology

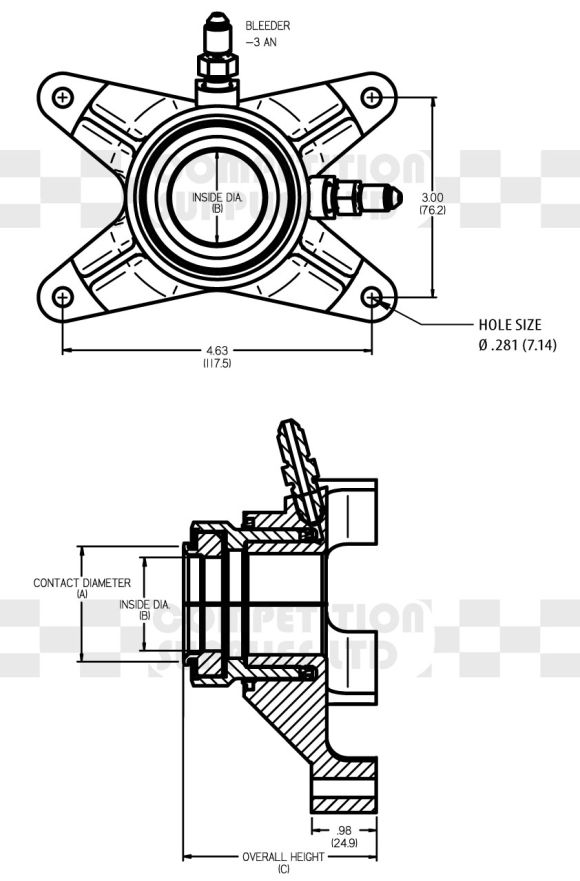

Installation Drawing
More Information
Reviews
Q & A
Why Competition Supplies?

The Tilton 5000 Series hydraulic release bearing (HRB) has a 4 bolt pattern for mounting into Tilton 52/53 Series bellhousings it can also be adapted for use in other bellhousings.  It is for use with push-type clutches. Versions are available both for use with small diameter competition clutches (4.5", 5.5"; & 7.25") and most OE-type clutches.
Tilton hydraulic release bearings are designed to eliminate the need for mechanical linkages, pivot balls, spacers and external slave cylinders. Modulation and release travel can be adjusted by changing master cylinder bore size and/or clutch pedal ratio. 5000 series hydraulic release bearing assemblies have a total of .700" (17.8mm) of piston travel.

Bearing Size Closed Height
38mm 44mm With Shim Without Shim
60-5300 60-5200 1.92" (48.8mm) 1.87" (47.5mm)
60-5310 60-5210 2.02" (51.3mm) 1.97" (50.0mm)
60-5320 60-5220 2.12" (53.8mm) 2.07" (52.6mm)
60-5330 60-5230 2.22" (56.4mm) 2.17" (55.1mm)
60-5340 60-5240 2.32" (58.9mm) 2.27" (57.7mm)
60-5350 60-5250 2.42" (61.5mm) 2.37" (60.2mm)
60-5360 60-5260 2.52" (64.0mm) 2.47" (62.7mm)
60-5370 60-5270 2.62" (66.5mm) 2.57" (65.3mm)
60-5380 60-5280 2.72" (69.1mm) 2.67" (67.8mm)
60-5390 60-5290 2.82" (71.6mm) 2.77" (70.4mm)



Part numbers:
60-5200 60-5210 60-5220 60-5230 60-5240 60-5250 60-5260 60-5270 60-5280 60-5290 60-5300 60-5310 60-5320 60-5330 60-5340 60-5350 60-5360 60-5370 60-5380 60-5390 60-5000
