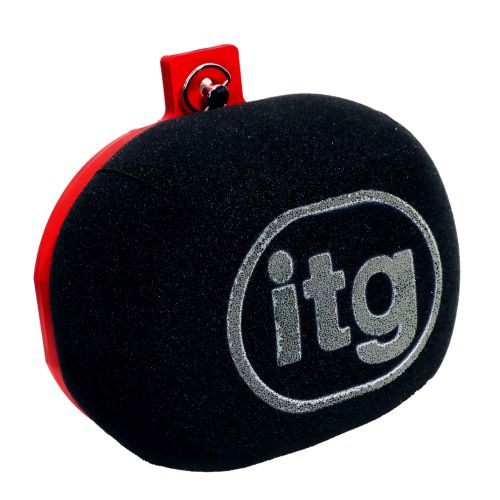

The JC20 range of air filters are designed to be used in conjunction with carburettor specific or universal base plates whcih must be purchased seperately.

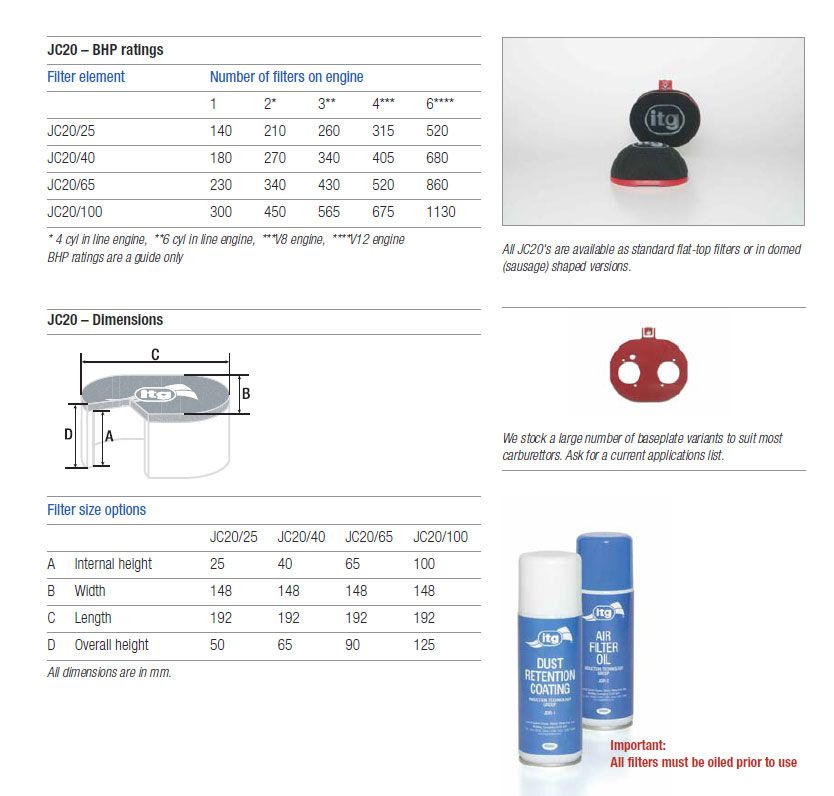

The elements are available in a range of heights as specified below. These filters are supplied as standard as a "Box" shape, but a domed profile is available to order which may ease installation on some applications.
- ITG air filters are constructed using fire retardant reticulated polyurethane foam in the unique TriFoam system which offers three layers of increasingly finer filtration. This system offers maximum filtration with minimum drop in air flow as well as the capability to absorb a large amount of dust before cleaning or replacement is required.
- An average gap of at least 13mm should be allowed between the main face of the air filter & any bodywork.
- Where air filters are used in conjunction with rampipes / trumpets there must be an absolute minimum of 19mm clearance between the end of the rampipe & the filter with over 32mm being preferable .
- All ITG filters are supplied dry & should be treated with one of the two available dust retention coatings.
