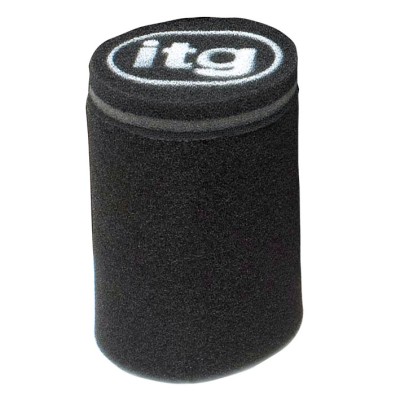

Single filter sock designed to fit over a rampipe/trumpet.
External height: 165mm
Outside diameter: 115mm
Internal diameter: 80mm
ITG air filters are constructed using fire retardant reticulated polyurethane foam in the unique TriFoam system which offers three layers of increasingly finer filtration. This system offers maximum filtration with minimum drop in air flow as well as the capability to absorb a large amount of dust before cleaning or replacement is required.
An average gap of at least 13mm should be allowed between the main face of the air filter & any bodywork.
Where air filters are used in conjunction with rampipes / trumpets there must be an absolute minimum of 19mm clearance between the end of the rampipe & the filter with over 32mm being preferable .
All ITG filters are supplied dry & should be treated with one of the two available dust retention coatings.
