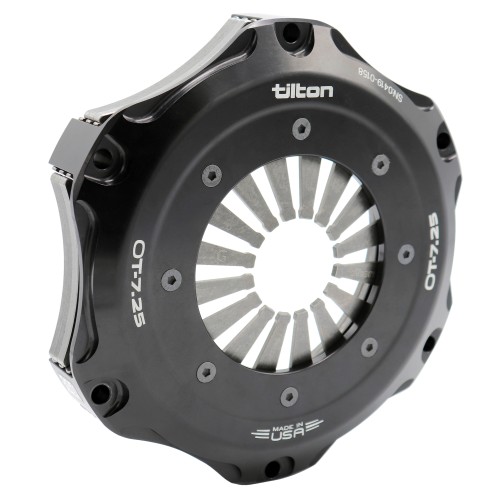

Tilton 7 1/4" (184mm) Triple Plate Sintered Metallic Clutch. These clutches are available with a selection of different diaphragm springs and to fit either step type or pot type flywheels. They benefit from Tilton's longer finger diaphragm design which allows them to be used with either a conventional 52mm contact bearing or for better performance a 44mm contact release bearing. This reduces the pedal effort required to release and improves the modulation to facilitate better and more consistant starts. The one pieces aluminium clutch basket is of an open "lug drive" design which allows the clutch to run cooler and cleaner than A-ring type clutches whilst the drive is transmitted to the cover via forged steel thrust buttons fitted in the legs, a more reliable and durable method than the thin stainless wear clips favoured by other manufacturers. These units are quite simply the best of their type available! Driven plates should be ordered seperately and are available in a huge range of spline and hub options. The clutch selection notes below should help you to choose the most appropriate version, but if you would like to discuss your specific application then please contact us.
The figures listed in the tables should only be used as a guide. Clutch selection needs to take into account the type of event it is being used for and what it is being fitted into. If you require and help making you clutch selection please call or email for guidance
Please Note: Driven plates are not included and should be ordered seperately, by clicking the associated products link below, a massive range of spline sizes and configurations are available from stock, if you are not certain of your requirement please contact us for assistance.
TRIPLE PLATE
| Diaphragm Spring |
Pressure Plate Ratio |
Torque Capacity (Lb-Ft/Nm) |
Release Load (lb/daN) |
Weight | M.O.I (Ln-in2/ kg-m2) |
Part Number |
| White | High | 590/803 | 400/180 | 4.5Kg | 87.6/0.258 | 66-803HW |
| White | Ultra-High | 701/954 | 400/180 | 4.5Kg | 87.6/0.258 | 66-803UW |
| Buff | High | 720/979 | 480/211 | 4.5Kg | 87.6/0.258 | 66-803HBF |
| Buff | Ultra-High | 855/1163 | 480/211 | 4.5Kg | 87.6/0.258 | 66-803UBF |
| Orange | High | 840/1142 | 560/247 | 4.5Kg | 87.6/0.258 | 66-803HORA |
| Orange | Ultra-High | 1005/1367 | 560/247 | 4.5Kg | 87.6/0.258 | 66-803UORA |
| Grey | High | 1020/1387 | 680/299 | 4.5Kg | 87.6/0.258 | 66-803HG |
| Grey | Ultra-High | 1230/1673 | 680/299 | 4.5Kg | 87.6/0.258 | 66-803UG |
| Dbl. Grey | High | 1140/1550 | 760/334 | 4.5Kg | 87.6/0.258 | 66-803HGG |
| Dbl. Grey | Ultra-High | 1365/1856 | 760/334 | 4.5Kg | 87.6/0.258 | 66-803UGG |
66-803HW 66-803HBF 66-803HORA 66-803HG 66-803HGG 66-803HGGG 66-813HW 66-813HBF 66-813HORA 66-813HG 66-813HGG 66-813HGGG 66-803UBF 66-803UW 66-803UORA 66-803UG 66-803UGG 66-803UGGG 66-813UW 66-813UBF 66-813UORA 66-813UG 66-813UGG 66-813UGGG
Tilton 7.25" (184mm) Cover Mount Ring Gear Sintered Competition Clutch
Triple Plate - Grey Spring - High Ratio - Step Flywheel Type 66-803HG
