APS Fly By Wire Throttle Mount
APS
APS Fly By Wire Throttle Mount
Description
Features
Reviews
Q & A
Why Competition Supplies?

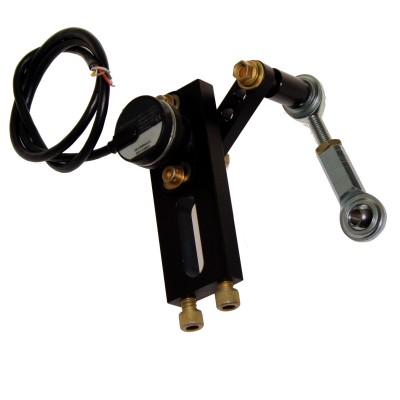

The Tilton Fly By Wire Throttle Mount is an optional component for use with 72-603, 72-615, 72-803 and 72-903 three pedal floor mount assemblies.  The mount enables the use of our .5-4.5v  dual channel throttle position sensor.

Sensor Features & Benefits
• Contactless technology, long life and impervious to dither vibration.
• Absolute analogue output, no loss of position on power down.
• 90° measuring range, maximised sensitivity optimised for Tilton sensor mount and throttle pedal.
• Dual outputs, redundant output for safety.
• Temperature error less than 50ppm/°C , maximises system accuracy over temperature range.
• Rugged housing and shaft designs, sealed to IP68, suitable for extreme motorsport environments.Throttle Position Sensor Specification

Penny & Giles Specification:
Dual channel contactless throttle position sensor
Operating Angle : 90 Degrees
Output: 0.5 -4.5V analogue
Connection: 50cm Fly Lead with 4 wire core

Penny & Giles Connections:
Red :            +V Supply
Black:           0V Supply GND
Yellow:          Ch1 Output
White:          Ch2 Output

Variohm Specification:
Dual channel contactless throttle position sensor
Operating Angle : 90 Degrees
Output: 0.5 -4.5V analogue
Connection: 50cm Fly Lead with 6 wire core

Variohm Connections:
Channel 1 (CW)
Red :            +5V Supply
Black:           Ground
White:          Signal Output

Channel 2 (CCW)
Green :            +5V Supply
Blue:           Ground
Yellow:          Signal Output

Part numbers:
72-792 72-792-90TPS 72-792-90TPS-V

APS Fly By Wire Throttle Mount


Mount and 90° Sensor Package

Part number: 72-792-90TPS
(0)
£287.12 VAT EX (£344.54 VAT INC)
Throttle Linkage
✓ In Stock
Order now for dispatch Tomorrow
Decrease quantity
Increase quantity
Throttle Linkage is required
ADD TO BASKET
