Tilton 76-Series master cylinders have a upgraded body from the old 76 series master cylinder but still keep their compact design, and now feature 2 x AN3 (3/8"-24) outlet ports with a port plug so that if either of the ports are redundant then these can be blocked off. The inlet port is threaded 7/16"-20 to accept AN4 fittings when remote-mounted reservoirs are used.
Please note: You will need remove the black inlet cap before fitting the reservoir.
Interchangable with AP CP2623 master cylinders
Corrosion resistant black anodised aluminum alloy body
29mm of stroke provides the fluid displacement needed for a wide variety of applications.
AN4 inlet port adapter; adapter can be removed to accept screw-on reservoirs with a 15/16"-16 thread.
Industry standard 2.25" 57mm (center-to-center) front flange mount.
2 x AN3 outlet ports.
Weighs 315gms (varies by bore size)
76-Series master cylinders share the same compact body design of the 75-Series master cylinders, but feature an AN4 (7/16"-20) inlet port adapter.
The inlet port is designed to accept AN4 fittings when remote-mounted reservoirs are used, or the adapter can be removed to accept Tilton billet aluminium reservoirs.
Write a review
Write a Review
We stock an extensive range of components carefully curated to offer quality and value for money. We have not joined the mad rush for the bottom and recognise that value isn't only about price. We invest heavily in stock to offer exceptional availability and understand our products so we can work with you to create installations that are elegant and effective whilst meeting your performance and budgetary requirements. Large stocks and carefully selected courier partners allow us to offer unrivalled fast delivery when the pressure is on and great value when you have a little more time. If service, performance and value are your motivation then Competition Supplies are your best choice.

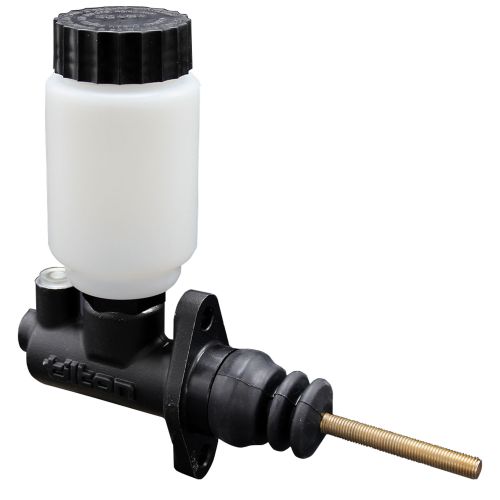

Tilton 76 Series Master Cylinders and Direct Mount Reservoir Bundle
