Home / Braking Components / Master Cylinders / Tilton 73 Series Master Cylinder

Description

Features

More Information

Reviews

Q & A

Why Competition Supplies?

Tilton 73-Series master cylinders offer great flexibility at an affordable price. The master cylinder has a1/8`` NPT fluid port which can be converted to -3 fittings if required

•

Reliable seal/piston design.

•

High pressure die-cast aluminium body provides a machined-look finish.

•

28mm of stroke provides the fluid displacement needed for a wide variety of applications.

•

Integral 295ml reservoir provides ample fluid capacity.

•

Internal baffle within reservoir keeps port covered with fluid if reservoir fluid level runs low.

•

Bellow forms a non-vented seal and keeps elements away from brake fluid.

•

Lid designed for easy removal. Features a " bail wire" , produced from high-tensile spring steel, designed to provide consistent clamp force, for a leak proof seal.

•

Standard 2.25" (centre-to-centre) front flange mount.

•

1/8" NPT outlet port, shrouded underneath reservoir to minimise the chance of fitting damage.

•

Weighs 640gms (varies by bore size)

Write a review

Write a Review

We stock an extensive range of components carefully curated to offer quality and value for money. We have not joined the mad rush for the bottom and recognise that value isn't only about price. We invest heavily in stock to offer exceptional availability and understand our products so we can work with you to create installations that are elegant and effective whilst meeting your performance and budgetary requirements. Large stocks and carefully selected courier partners allow us to offer unrivalled fast delivery when the pressure is on and great value when you have a little more time. If service, performance and value are your motivation then Competition Supplies are your best choice.

Part numbers:
73-875 73-750 73-1000

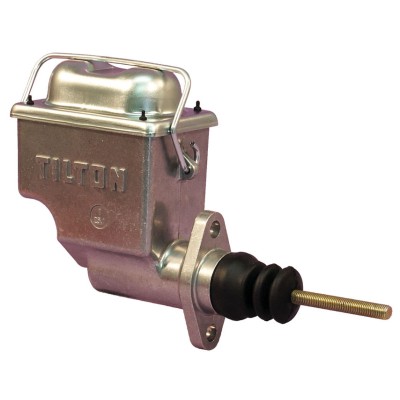

Tilton 73 Series Master Cylinder

(0)

£73.51 VAT EX (£88.21 VAT INC)

Bore Size

Please select your option to view stock

Bore Size is required

ADD TO BASKET
