/ Oil Cooler Fan Kit, Suit 235mm Matrix, 25 Row Coolers.
Description
Reviews
Why Competition Supplies?
Revotec oil cooler fan duct kits incorporate OEM quality 12V suction fan for reliable airflow. IP68 & rated for continual use. Ideal for diff and transmission applications where mounting the cooler in the airflow can be difficult
- No permanent oil cooler modifications.
- Draws air across the whole matrix for maximum cooling efficiency.
- High-temperature ABS (13 & 16 row versions) - stable to 105ºC.
- Powder coated aluminium (19, 25 & 34 row versions).
- Designed to fit leading oil cooler brands.
- Can be mounted vertically or inverted.
- Includes all necessary brackets and fixings (oil cooler not included).
Available to fit 13, 16, 25 and 34 row, 235mm matrix, coolers.
We offer compatible 235mm Matrix Oil coolers from Setrab and Mocal please refer the links below.
To Suit Cooler |
Matrix Size |
Weight |
Shroud & Fan Depth |
Current Draw |
Part Number |
|---|---|---|---|---|---|
| 13 Row | 235 x 100mm | 956g | 150mm | 5.5A | OCF13 |
| 16 Row | 235 x 124mm | 1012g | 150mm | 5.5A | OCF16 |
| 19 Row | 235 x 147mm | 1096g | 105mm | 5.5A | OCF19 |
| 25 Row | 235 x 194mm | 1258g | 122mm | 6.2A | OCF25 |
| 34 Row | 235 x 265mm | 1358g | 88mm | 6.7A | OCF34 |
Part numbers:
OCF13 OCF16 OCF19 OCF25 OCF34
OCF13 OCF16 OCF19 OCF25 OCF34

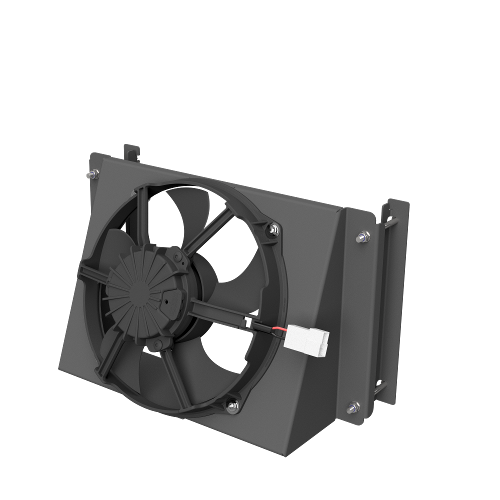

Oil Cooler Fan Kit, Suit 235mm Matrix, 25 Row Coolers.
Part number: OCF25
(0)
£182.60 VAT EX (£219.12 VAT INC)
