Electrical Bulkhead assembly for fitment to fuel tank top plates to allow the electrical supply for in tank fuel pumps. Glands for 2 & 4 wires are available which accept max. 2mm dia. wire. Please note cable shown for illustrative purposes only and is not included, please refer below for our in-tank electrical cable available separately.
Requires 16mm hole.

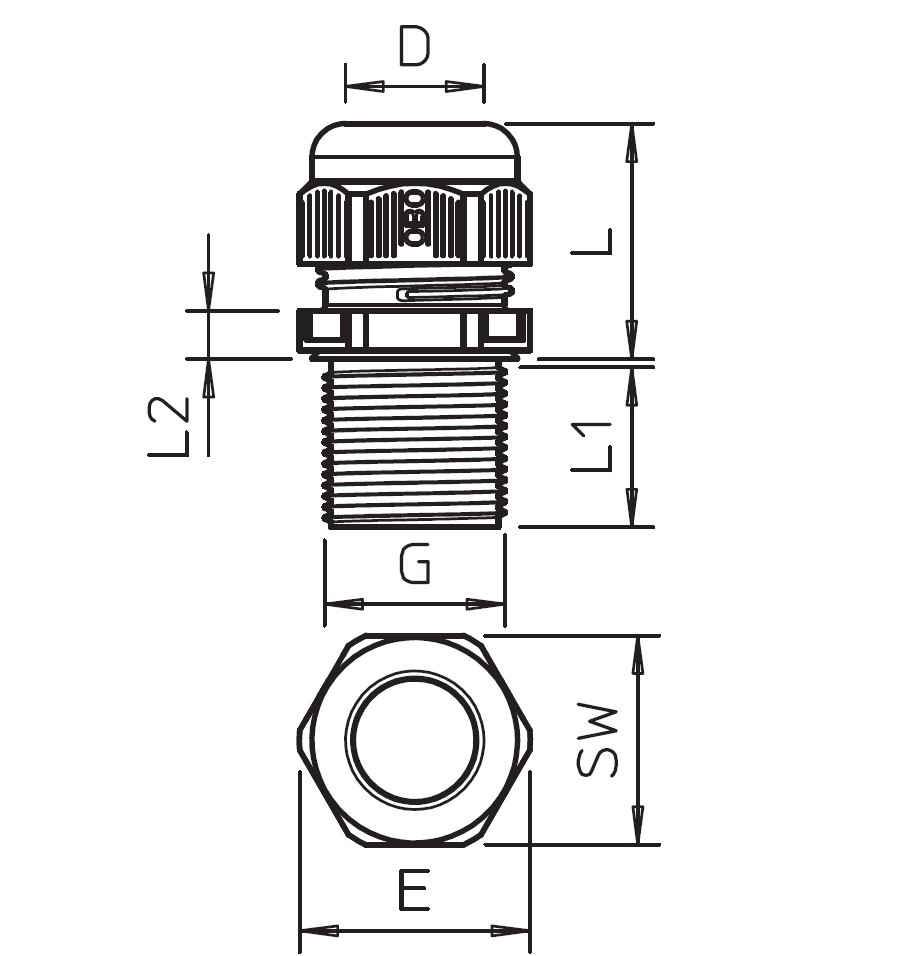

| Dimension E | 22.0mm |
| Dimension L min. | 20.5mm |
| Dimension L max. | 29.5mm |
| Dimension L1 | 24.0mm |
| Dimension L2 | 5.0mm |
| SW | 20.0mm |
| Dimemsion G | 16.0mm |
| Thread | M16x1.5 |
Part numbers:
CGL162X2K CGL164X2K
CGL162X2K CGL164X2K
Fuel Tank Electrical Bulkhead Suit In-Tank Pumps
