Holley
HydraMat Fuel Pickup
Description
Features
More Information (PDF)
Reviews
Why Competition Supplies?

HydraMat designed to fit on the bottom of in tank fuel pumps with a 11mm inlet

The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in both production fuel tanks and competition fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution! Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.

Hydramat Options
Part # Size Required Tank Opening
16-101 Cross Style, 381 x 203mm, Centre Outlet, 3/8 NPT >80mm
16-105 Rectangle, 381 x 76mm, Centre Outlet, 3/8 NPT >52mm
16-106 Square, 280mm, Centre Outlet, 1/2" NPT >102mm
16-107 Square, 381mm, Centre Outlet, 1/2" NPT >102mm
16-108 Rectangle, 203 x 76mm, Centre Outlet, 3/8 NPT >52mm
16-111 Rectangle, 381 x 76mm, 11mm Inlet Suit ITP fuel pumps

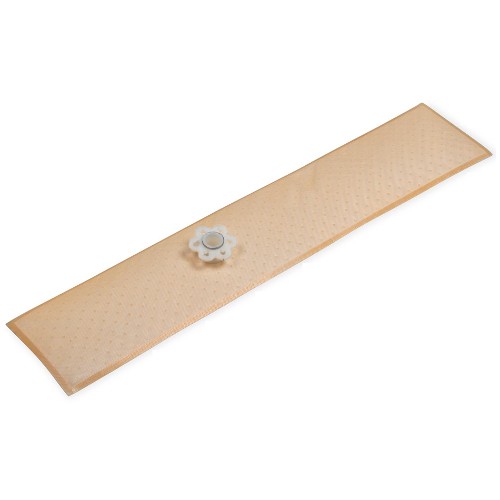

HydraMat Fuel Pickup
Rectangle, 76mm x 381mm, ITP 11 mm

Part number: HLY16-111
(0)
£295.15 VAT EX (£354.18 VAT INC)
✓ 2 In Stock at our Silverstone Warehouse
Order now for dispatch Tomorrow
Subtract
Add
£295.15 VAT EX (£354.18 VAT INC)
