The JC50 range of air filters are designed to span a pair of carburettors & to be used in conjunction with carburettor specific or universal base plates which must be purchased seperately.
The elements are available in a range of heights as specified bellow. These filters are supplied as standard as a "Box" shape, but a domed profile is available to order which may ease installation on some applications.
Width: 148mm
Length: 436mm
Height Options: Please refer table below
- ITG air filters are constructed using fire retardant reticulated polyurethane foam in the unique TriFoam system which offers three layers of increasingly finer filtration. This system offers maximum filtration with minimum drop in air flow as well as the capability to absorb a large amount of dust before cleaning or replacement is required.
- An average gap of at least 13mm should be allowed between the main face of the air filter & any bodywork.
- Where air filters are used in conjunction with rampipes / trumpets there must be an absolute minimum of 19mm clearance between the end of the rampipe & the filter with over 32mm being preferable .
- All ITG filters are supplied dry & should be treated with one of the two available dust retention coatings.
Part numbers:
JC50/25 JC50/40 JC50/65 JC50/100 JC50/40S JC50/65S JC50/25S JC50/100S JC50/125S
JC50/25 JC50/40 JC50/65 JC50/100 JC50/40S JC50/65S JC50/25S JC50/100S JC50/125S

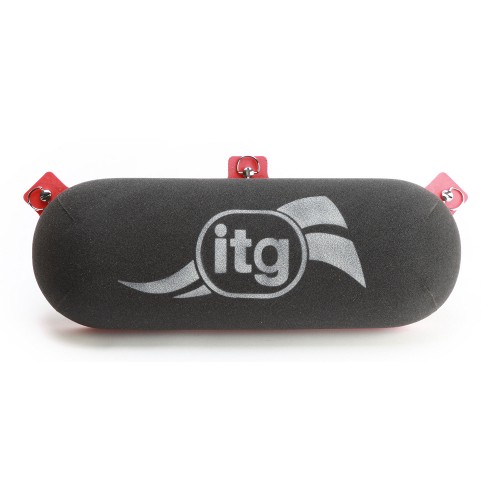

ITG JC50 Air Filter Element
Domed 65mm
Part number: JC50/65S
(0)
£134.00 VAT EX (£160.80 VAT INC)
Height
Option
£134.00 VAT EX (£160.80 VAT INC)
Height, Option are required
