Tilton 5000 Series Hydraulic Release Bearings

£272.32 Ex

Description

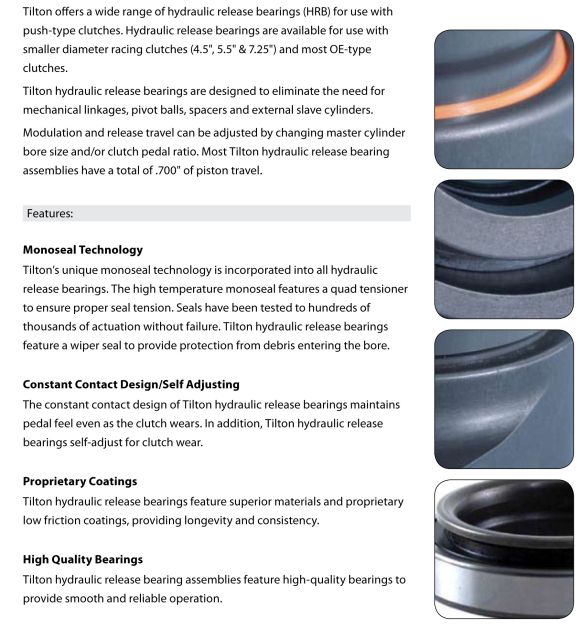

The Tilton 5000 Series hydraulic release bearing (HRB) has a 4 bolt pattern for mounting into Tilton 52/53 Series bellhousings it can also be adapted for use in other bellhousings.  It is for use with push-type clutches. Versions are available both for use with small diameter competition clutches (4.5", 5.5"; & 7.25") and most OE-type clutches.
Tilton hydraulic release bearings are designed to eliminate the need for mechanical linkages, pivot balls, spacers and external slave cylinders. Modulation and release travel can be adjusted by changing master cylinder bore size and/or clutch pedal ratio. 5000 series hydraulic release bearing assemblies have a total of .700" (17.8mm) of piston travel.

Features

Typical Application: Direct mount into Tilton 52/53 Series bellhousings. Can also be adapted for use in other bellhousings.
Mount: 4-bolt pattern
Material: Cast aluminium body and billet aluminium piston
Piston area: 1.221 in² (788mm²)
Maximum stroke: .700`` (17.8mm)
Ports: -3 (3/8``-24)
Weight: 630 gms (varies by part number)

Available Versions

Bearing Size Closed Height
38mm 44mm With Shim Without Shim
60-5300 60-5200 1.92" (48.8mm) 1.87" (47.5mm)
60-5310 60-5210 2.02" (51.3mm) 1.97" (50.0mm)
60-5320 60-5220 2.12" (53.8mm) 2.07" (52.6mm)
60-5330 60-5230 2.22" (56.4mm) 2.17" (55.1mm)
60-5340 60-5240 2.32" (58.9mm) 2.27" (57.7mm)
60-5350 60-5250 2.42" (61.5mm) 2.37" (60.2mm)
60-5360 60-5260 2.52" (64.0mm) 2.47" (62.7mm)
60-5370 60-5270 2.62" (66.5mm) 2.57" (65.3mm)
60-5380 60-5280 2.72" (69.1mm) 2.67" (67.8mm)
60-5390 60-5290 2.82" (71.6mm) 2.77" (70.4mm)



Recommended Master Cylinder Sizes & Bearing Types

Clutch Type Bearing Contact Diameter Recommended M/C Bore Size
4.5" - 5.5" Tilton 1.50" (38mm) 5/8" (15.9mm)
7.25" Tilton 1.73" (44mm) 3/4" (19.1mm)
4.5" - 7.25" Non Tilton 2.05" (52mm) 3/4" (19.1mm)
8.5" - 10.5" Bent Finger & Lever-Type 1.68" - 2.60" (47mm - 66mm) 7/8" (22.2mm)

Tilton HRB's have an effective piston area of 1.221 in²/sq (788mm²). The table below gives our recommendation for master cylinder bore size and the preferred bearing contact type and size for common clutch types.  If you require assistance in selecting the correct version for your installation then please contact us.
